Mold Release

Release films and fabrics with adhesive for permanent tool release

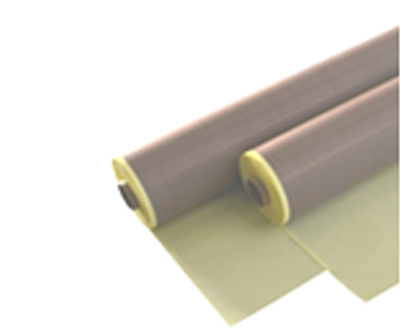

Tooltec® A005

Tooltec® A005 pressure sensitive tape is designed to adhere to tool surfaces providing semi-permanent release and a reconditioned surface. It can be used on all types of molds, press platens, caul sheets or any surface that comes in contact with resins or adhesives. Release agents are not required on the mold surface thereby reducing cost and parts contamination.

Tooltec-A005
Maximum Use Temperature Fabric Adhesive Total Thickness Roll Sizes (Inches) Roll Sizes (Metric)
500°F 75µm PTFE Coated Fiberglass Silicone 125µm 1" x 36 yards 25mm x 33m
500°F 75µm PTFE Coated Fiberglass Silicone 125µm 2" x 36 yards 50mm x 33m
500°F 75µm PTFE Coated Fiberglass Silicone 125µm 36" x 18 yards 0.91m x 16.5m
500°F 75µm PTFE Coated Fiberglass Silicone 125µm 48" x 18 yards 1.22m x 16.5m
500°F 75µm PTFE Coated Fiberglass Silicone 125µm 59" x 18 yards 1.50m x 16.5m
Hard Wearing Option

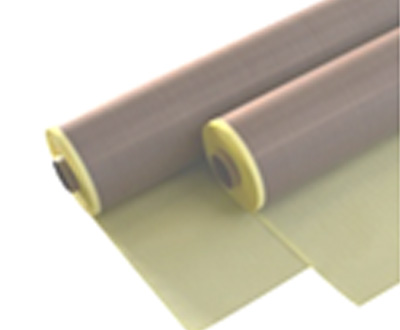

Tooltec® A007

Tooltec® A007 pressure sensitive tape is designed to adhere to tool surfaces providing semi-permanent release and a reconditioned surface. It can be used on all types of molds, press platens, caul sheets or any surface that comes in contact with resins or adhesives. Release agents are not required on the mold surface thereby reducing cost and parts contamination.

Tooltec-A007
Maximum Use Temperature Fabric Adhesive Total Thickness Roll Sizes (Inches) Roll Sizes (Metric)
500°F 125µm PTFE Coated Fiberglass Silicone 175µm 1" x 36 yards 25mm x 33m
500°F 125µm PTFE Coated Fiberglass Silicone 175µm 36" x 18 yards 0.91m x 16.5m
500°F 125µm PTFE Coated Fiberglass Silicone 175µm 48" x 18 yards 1.22m x 16.5m
Low Cost Release

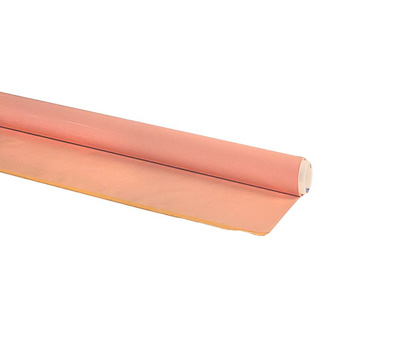

Toolwright 3

Toolwright 3 is a light orange extruded fluoropolymer film coated with silicone pressure sensitive adhesive. Toolwright 3 has high elongation, good tear strength, high temperature resistance and excellent clean up after removal.

Toolwright-3
Maximum Use Temperature Film Carrier Adhesive Total Thickness Roll Sizes (Inches) Roll Sizes (Metric)
500°F 50µm extruded fluoropolymer Silicone 75µm 50" x 18 yards 1.27m x 16.5m

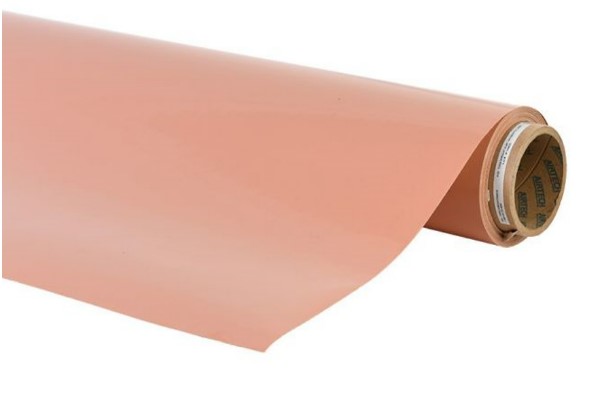

Toolwright 5

Toolwright 5 is an extruded fluoropolymer film coated with silicone pressure sensitive adhesive. The orange color is highly visible on most substrates in addition to offering high elongation and tensile strength.

Toolwright-5
Maximum Use Temperature Film Carrier Adhesive Total Thickness Roll Sizes (Inches) Roll Sizes (Metric)
500°F 100µm Extruded Fluoropolymer Silicone 125µm 46" x 18 yards 1.17m x 16.5m
Super Gloss Finish

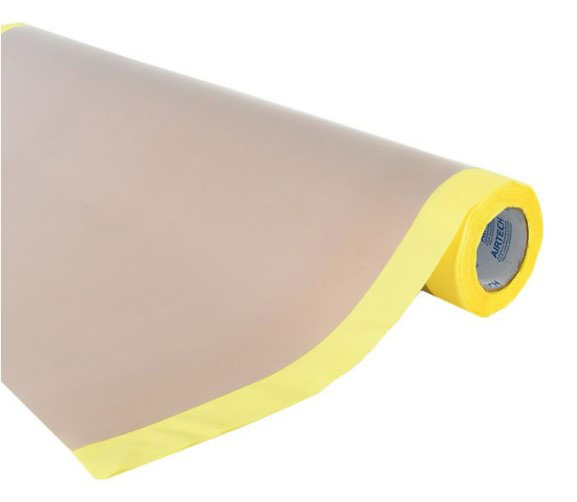

Tooltec® CS5

Tooltec® CS5 is a PTFE film coated with a high temperature silicone pressure sensitive adhesive. It can be used to seal masters and leaky tool surfaces while providing semi-permanent and contamination free part release. Tooltec® CS5 is a non-reinforced mold surface reconditioning tape allowing conformance to complex contours and providing a semi-permanent release for contoured shapes.

Tooltec-CS5
Maximum Use Temperature Film Carrier Adhesive Total Thickness Roll Sizes (Inches) Roll Sizes (Metric)
500°F 127µm PTFE Silicone 165µm 4" x 18 yards 100mm x 16.5m
500°F 127µm PTFE Silicone 165µm 36" x 18 yards 0.91m x 16.5m
500°F 127µm PTFE Silicone 165µm 48" x 18 yards 1.22m x 16.5m

Notes:

  • Other products are available, please visit www.airtechintl.com for full product selection.
  • Other sizes are available on special order, please contact your Airtech customer service representative for complete details.
