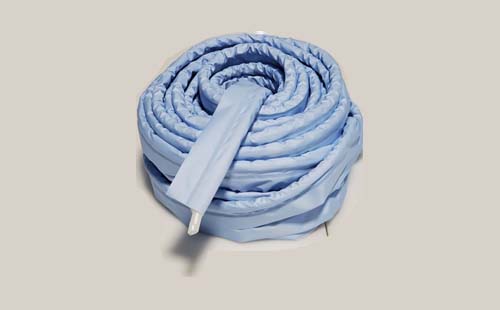

Vacuum Manifolds

Maximum Use Temperature	Material Type	Color	Roll Sizes (Inches)	Roll Sizes (Metric)
250°F	Dahltexx® & PE Spiral	Blue	2" x 100 feet	50mm x 30.5m

No Bleed Manifold

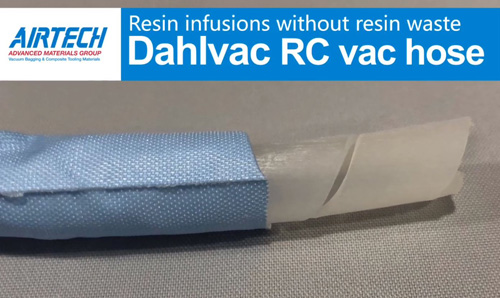

Dahlvac RC Vac Hose

Dahlvac RC Vacuum Hose is an easy to use vacuum manifold. The internal spiral tube provides good vacuum flow and the outer layer of Dahltexx® prevents resin from entering the vacuum channel. Dahlvac RC Vacuum hose id very flexible and can be made to follow contours and corners easily.

Maximum Use Temperature	Material Type	Color	Roll Sizes (Inches)	Roll Sizes (Metric)
250°F	Dahltexx® & PE Spiral	Blue	0.5" x 100 feet	12.7mm x 30.5m

Less Resin Waste

Dahlpac MC79

Dahlpac MC79-1 is an easy to use strip material that allows vacuum to be applied over the surface of a composite laminate with no resin bleed out and little part mark-off. Dahlpac MC79-1 is constructed with Dahltexx® SP-2 fabric which breaths efficiently and can control resin flow.

Maximum Use Temperature	Material Type	Color	Roll Sizes (Inches)	Roll Sizes (Metric)
255°F	Nylon fabric & PP Mesh	Blue	4" x 27 yards	100mm x 25m

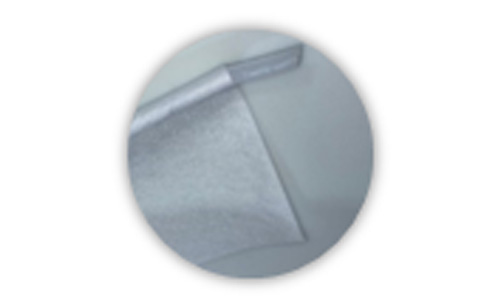

Vac-Brake R

Vac-Brake R is a combination vacuum manifold and resin brake for the periphery of resin infusion moldings. Vac-Brake R features a spiral tube sewn into a technical textile. Positioned around the edge of the part it distributes even vacuum and provides a resin brake preventing resin waste and choking of the vacuum manifold.
